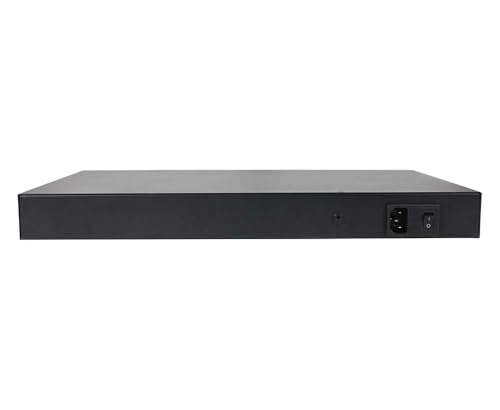

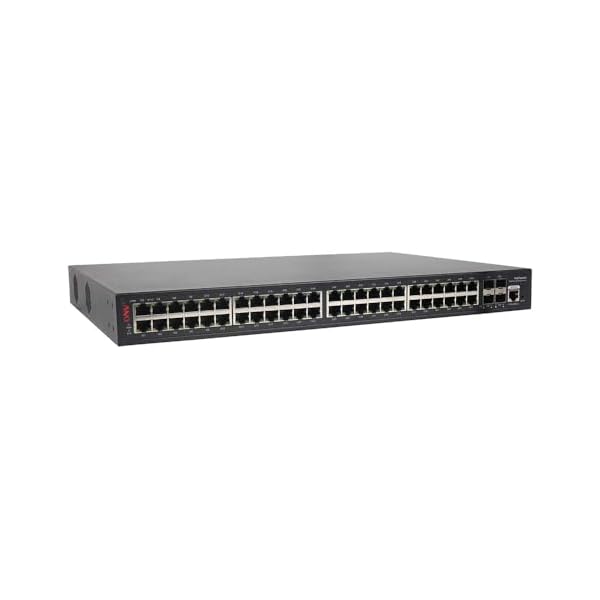

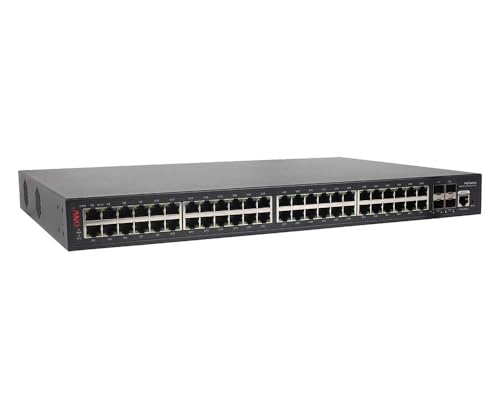

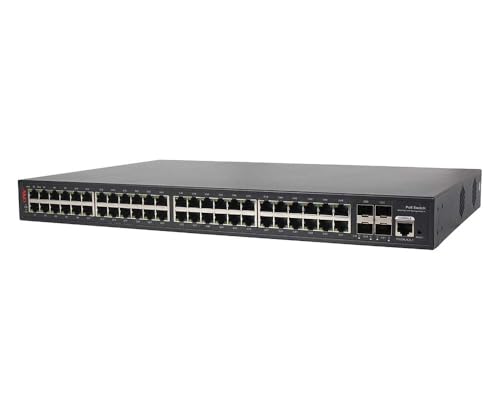

ONV Gigabit 52-port L2+ managed PoE switch ONV-POE33052PFM

Description

ONV Gigabit 52-port L2+ managed PoE switch ONV-POE33052PFM – L2+ managed PoE switch with 48*10/100/1000M RJ45 ports and 4*100/1000M uplink SFP fiber ports. Port 1-48 can support IEEE 802.3 af/at PoE standard. It built-in 600W power supply and 1U/19″ cabinet installation.

The ONV-POE33052PFM has L2+ network management functions. It can support IPV4 management and static routing forwarding, complete security protection mechanisms, complete ACL/ QoS policies, and rich VLAN functions, making it easy to manage and maintain. Supports multiple network redundancy protocols RSTP (
Gigabit line speed access, uplink SFP fiber port ◇ Support non-blocking wire-speed forwarding. ◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. ◇ Support Gigabit RJ45 port and uplink SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply ◇ Support PoE network management function, port power status viewing, etc. through network management configuration. ◇ Comply with IEEE 802.3 af/at PoE power supply standard, automatically identify PoE equipment for power supply. ◇ 48*10/100/1000Base-T RJ45 ports support PoE power to meet the power supply needs of security monitoring, conference call systems, wireless coverage, and other scenarios.
Strong business processing capability ◇ Support IEEE 802.1Q VLAN. ◇ Ring network RSTP spanning tree protocol eliminates layer 2 loops and realizes link backup. ◇ Support IGMP Snooping V1/V2 to meet the needs of multi-terminal high-definition video surveillance and video conferencing access. ◇ Support QoS, three priority modes based on port, 802.1P-based and DSCP-based, and four queue scheduling algorithms: SP, WRR, and WFQ.
Security ◇ Port isolation and storm control. ◇ 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Security ◇ Port isolation and storm control. ◇ 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Stable and reliable ◇ CCC, CE, FCC, RoHS. ◇ The user-friendly panel can show the device status through the LED indicator of PWR, PoE, and Link. ◇ Using self-developed power supply with high redundancy design provides long-term and stable PoE power output. ◇ Low power consumption, with fan, galvanized steel metal housing, and excellent heat dissipation to ensure the stable operation of the switch.
Easy O&M management ◇ CPU monitoring, memory monitoring and Ping detection. ◇ System logs, and port traffic statistics facilitate network optimization and transformation. ◇ LLDP facilitates the network management system to query and determine the communication status of the link. ◇ Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.
